Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tekanan nominal: | 1.6MPa | Kisaran Suhu: | -50~-250C |
|---|---|---|---|
| Metode Koneksi: | Flens | Mode penggerak: | electric.pneumatic.manual (kunci tersedia) |
| Bahan: | SUS316, ,304 | Aksesoris: | pencari lokasi, sakelar batas katup solenoid |
| Media yang berlaku: | air, uap, gas | Struktur: | Bola |

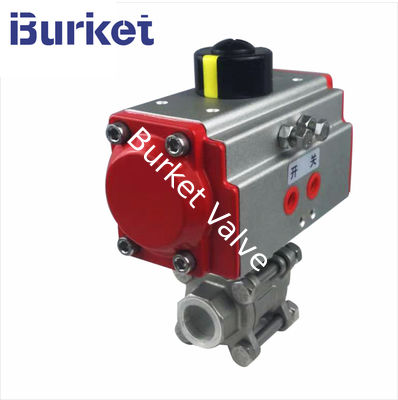

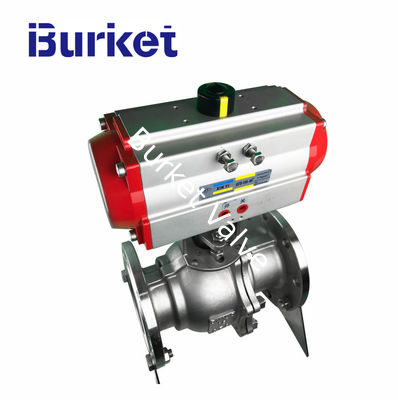

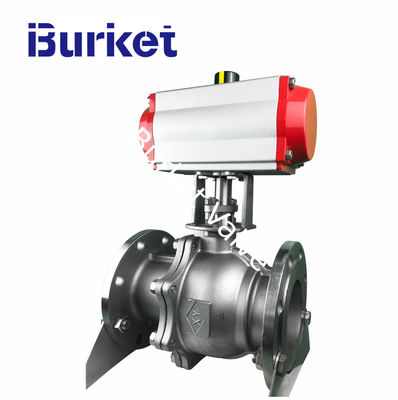

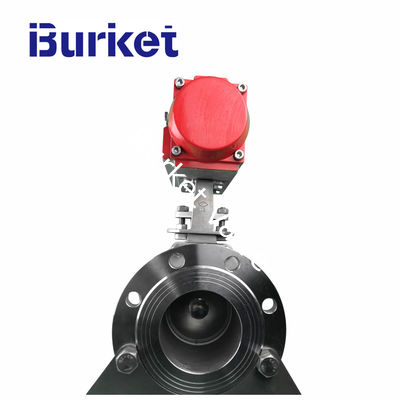

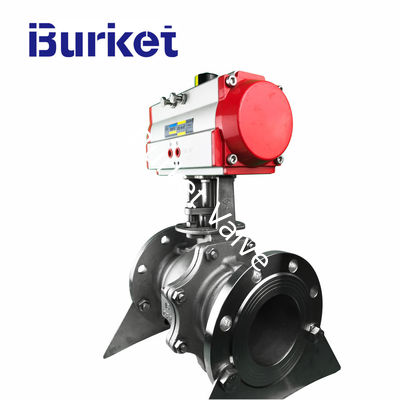

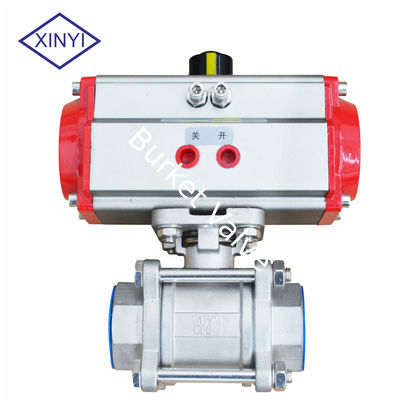

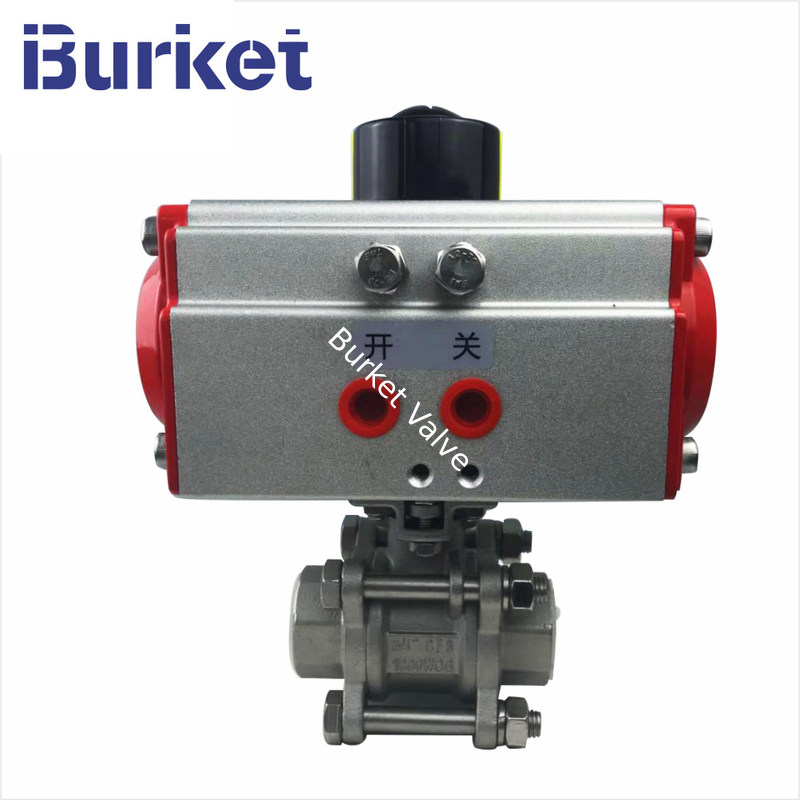

DN50 2 inch ss304 flange 3 pcs Ball Valve with Pneumatic Actuator
Applications:
Pneumatic actuator ball valve are greatly used in
SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close
DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
Advantages:
| Size Range | 1/2"~8", DN15~200 |
| Acting Mode | Double Acting, Spring Return (Single Acting) |
| Operating Pressure | 1.6MPa |
| Air Supply Pressure | 2.5 to 8 bar |
| Lifespan | 1,000,000 (1 Million) Times |
| Angle of Rotation | 90° ±4° |
| Body Material | SS304, SS316, SS316L |
| Sealing Material | PTFE: -30°C~180°C, PPL: -30°C~250°C |
| Number of Ways | 2 Way |
| End Connection | Flanged |
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid |
| Optional Actuation | Handlever, Electric Actuated, or Pneumatic Actuated |
| Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device |
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper |
Workshop
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
