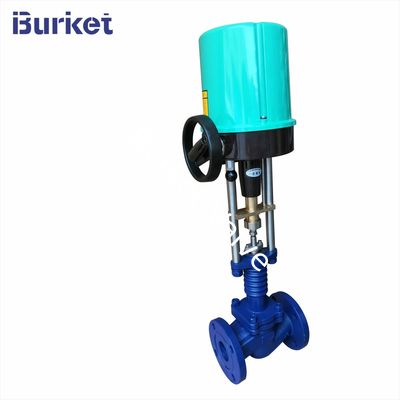

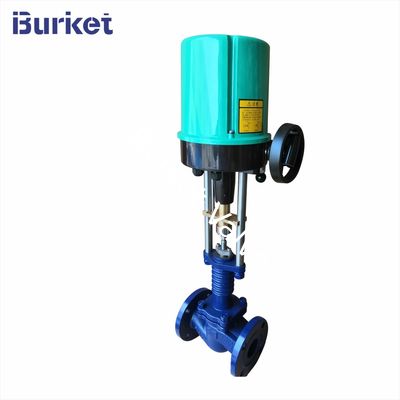

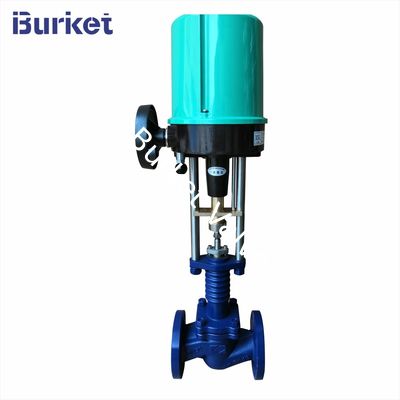

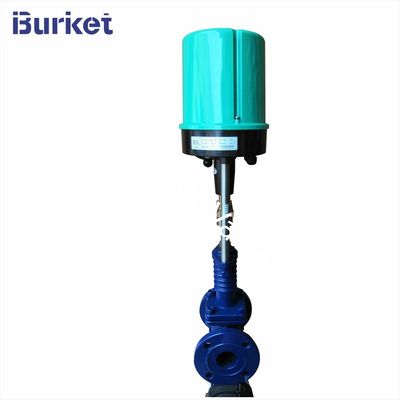

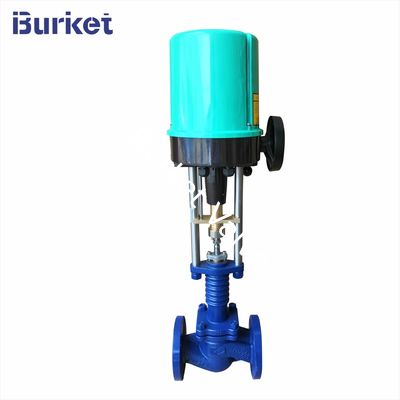

PN16 DN80 Rtk high temperature steam Electric Motor P.PI.PID.4-20mA 0-10VDC control Regulating valve on setting

PN16 DN80 Rtk high temperature steam Electric Motor P.PI.PID.4-20mA 0-10VDC control Regulating valve on setting

The Valve offers numerous benefits over other control valves including long life stem seals proven millions of times over, flexible changeable trims offering multiple Kvs values per body size, precise and durable operation (even at high differential pressures) thanks to the vibration reducing shaft guiding, easy handling, the small footprint, rotatable upper part and reduced weight when compared with other control valves.

Suitable for non-critical complex control tasks uses in applications such as industrial complexes, plant construction and process technology installations for mediums such as cooling water, cooling brine, warm water, hot water and steam.

Offered as standard in the trim with Cast Iron Body, Stainless Steel Trim and the Spring-Loaded PTFE V-Ring unit complete with electric actuator with integrated positioner unit. Options available upon request include different trim materials, parabolic plugs with PTFE seats, miniature Kvs values, increased tightness on seats i.e. Class IV leakage rate.

If you are not sure of the size, you require for your process please do not hesitate to get in contact with our Technical Sales team who will be able to size the correct valve for your process.

Key Features:

• Flanged Connection
• Cast Iron Body & Stainless Steel Trim
• Spring Loaded PTFE V-Ring Unit
• Electric Actuator (90-264V AC 47-63Hz), 0-10V or 4-20mA Input
• Up to -10 to +220°C Temperature Rated
• DN15 to DN100, Kvs from 1 to 100
• 50:1 Rangeability
