Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tekanan nominal: | 1.6MPa | Tekanan Operasi: | 0,3-0,4Mpa |
|---|---|---|---|
| Kisaran Suhu: | -50~-200C | Metode Koneksi: | Flens |
| Mode penggerak: | electric.pneumatic.manual (kunci tersedia) | Bahan katup yang buruk: | Baja Tahan Karat |
| Plat katup: | SUS316.304,WCB | Aksesoris: | pencari lokasi, sakelar batas katup solenoid |
| Media yang berlaku: | air, uap, gas | Struktur: | kupu-kupu |
| Industri yang Berlaku: | pencelupan, pettrokimia, makanan, minuman, pengolahan air, AC, farmasi, pembuatan kertas | Kekuatan: | petunjuk |

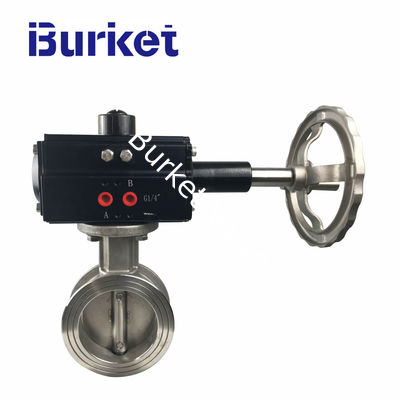

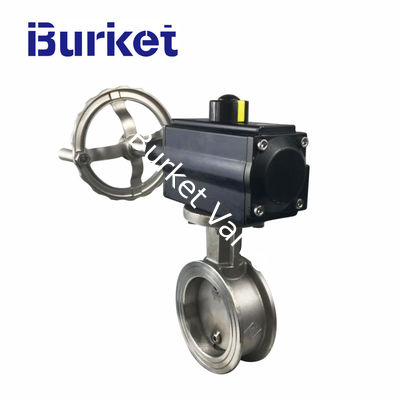

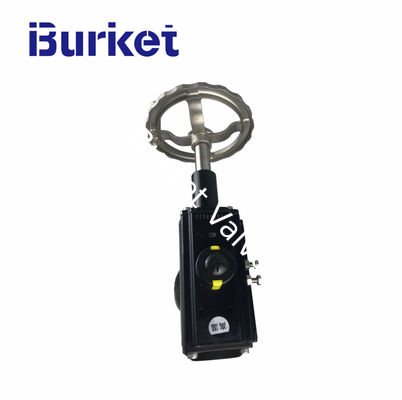

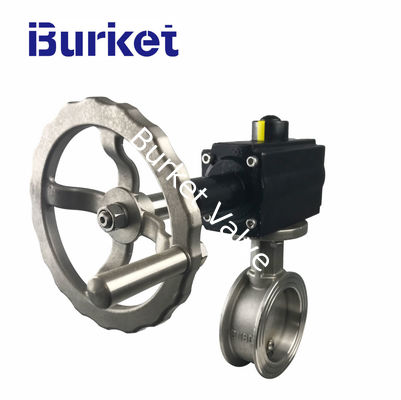

DN150 DN 80 DN250 DN200 8inch ANSICL150 stainless steel Wafer Type Pneumatic Actuator Butterfly Valve
Adoptive Standards
1.Valve Design: API 609, MSS SP-67
2.Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
3.Pressure Test: API 598
4.Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
5.Top Flange: ISO5211
Features
1.vertical center line disc
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function/Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Application
1.Water Treatment Plant 2.Breweries
3.Drilling Rigs 4. Heating & Air Conditioning
5.Paper Industry 6.Chemical Industry
7.Gas Plant 8.Pneumatic Conveyors
9.Sugar Industry 10.Waste Effluent Treatment Plant
11.Cooling Water Circulation 12.Compressed Air
Workshop
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
