Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tekanan nominal: | 1.6MPa | Tekanan Operasi: | 0,3-0,4Mpa |
|---|---|---|---|
| Kisaran Suhu: | -50~-200C | Metode Koneksi: | Flens |
| Mode penggerak: | electric.pneumatic.manual (kunci tersedia) | Bahan katup yang buruk: | besi tuang Baja tahan karat |
| Plat katup: | SUS316.304,WCB | Karet: | EPDM FKM Teflon berjajar |
| Aksesoris: | pencari lokasi, sakelar batas katup solenoid | Media yang berlaku: | air, uap, gas |
| Struktur: | kupu-kupu | Industri yang Berlaku: | pencelupan, pettrokimia, makanan, minuman, pengolahan air, AC, farmasi, pembuatan kertas |

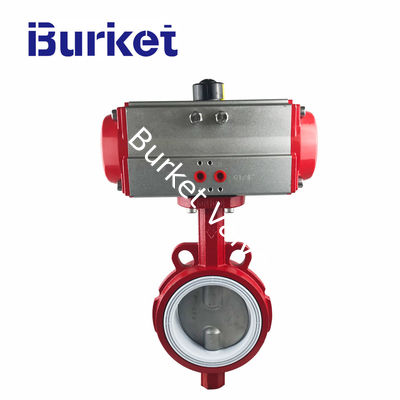

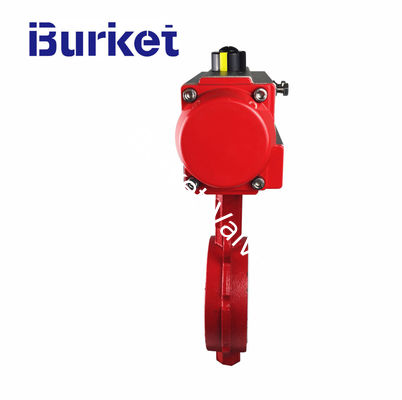

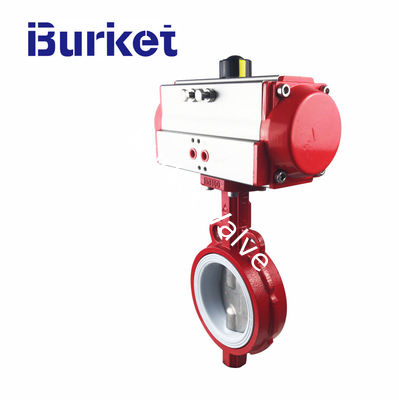

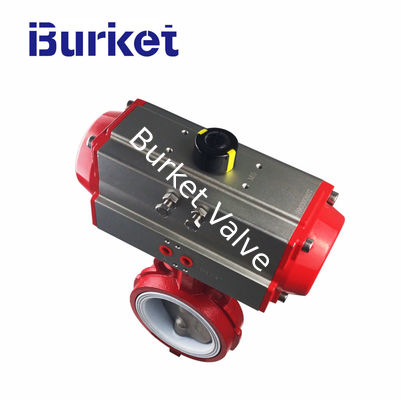

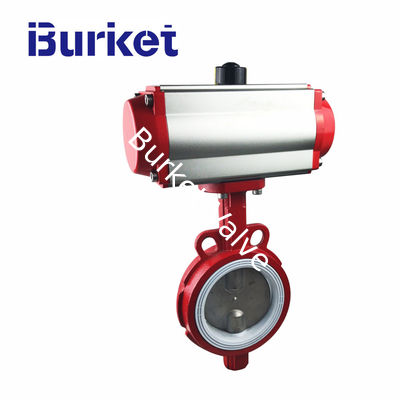

ANSI DIN JB Resilient Ductile Iron Wafer Type Pneumatic Actuator Butterfly Valve
What is the Details of our butterfly Valve?
Technical parameters
| Size Range | 2"-12"(DN50-DN300) |
| Pressure | PN10/PN16/PN25 ,ANSI150, BS10 TABLE D/E,JIS 10K,16K |
| Operating | Electric,Pneumatic, Manual |
| Connection | Wafer,Flange |
| Applicable medium | Water/Gas/Oil/Powder |
| Disc Type | With-Pin,One Stem no-Pin,Double Stem no-pin |
Valve Components
| Body Material | SS304, SS316, Ductile Iron, WCB, Aluminium Alloy |
| Seat Material | EPDM, PTFE, VITON, FPM |
|
Disc Material |
SS304, SS316, Hastelloy, Aluminium Bronze Spherical iron covered ceramics |
|
Ductile Iron covered with Nylon , Ductile Iron covered with Nickel, Ductile iron vulcanized rubber |
What is the Connection Standard of our butterfly Valve?
Adoptive Standards
1.Valve Design: API 609, MSS SP-67
2.Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
3.Pressure Test: API 598
4.Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
5.Top Flange: ISO5211
What is Feature of our butterfly Valve?
Features
1.vertical center line disc
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function/Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
What is Application of our butterfly valve?
Application
1.Water Treatment Plant 2.Breweries
3.Drilling Rigs 4. Heating & Air Conditioning
5.Paper Industry 6.Chemical Industry
7.Gas Plant 8.Pneumatic Conveyors
9.Sugar Industry 10.Waste Effluent Treatment Plant
11.Cooling Water Circulation 12.Compressed Air
SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close
DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
Workshop
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
